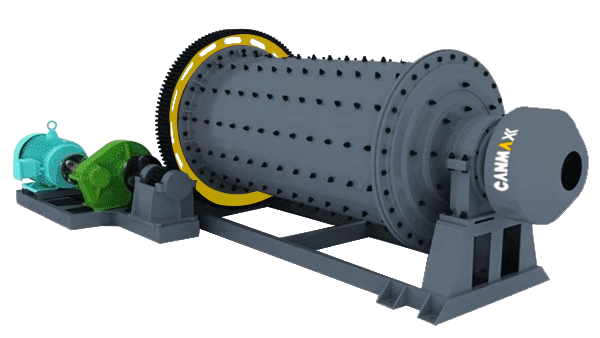

Ball Mill

Product introduction

Ball Mill Introduction：
Ball mill is the key equipment for secondary grinding after crushing. And it is suitable for grinding all kinds of ores and other materials. And Ball mill can do both wet grinding and dry grinding works. It is widely used in many industries, such as ferrous & non-ferrous metal mines, building materials, chemical, electric power, coal, transportation, light industry, etc. Our high-efficiency ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. saving power by 10-20%. According to different discharging ways, ball mill can be divided into two kinds, grate type and overflow type.

(Main Technical Parameters):

规格型号 Model	筒体转速 Cylinder rotary speed （r/min）	装球量 Loading ball weight (t)	进料粒度 Input size (mm)	出料粒度 Discharge size (mm)	产量 Capacity (t/h)	电机功率 Motor power (kw)	重量Weight (t)
Ф900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ф900×3000	39	2.7	≤20	0.075-0.89	1-4	22	5.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ф1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ф1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ф2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ф2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ф2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ф2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ф2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ф2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ф2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ф3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ф3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ф3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ф3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ф3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260
